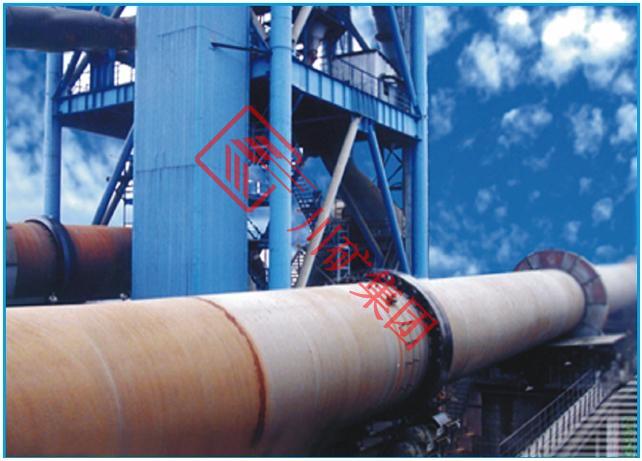

Metallurgy rotary kiln
Rotary kiln calcining system equipment of the Chuan mine production through technological innovation, using the most advanced hydraulic thrust roller device in the system, metering piston pump with high measurement accuracy, high accuracy speed control valve and contactgraphite block sealing device and other advanced technology. In order to improve the degree of automation, kiln industrial TV, process simulation screen, calcined with infrared scanners the calcining zone calcined situation directly reflected in the computer, the use of these new technologies intuitive sense of strong, easy to operate, reliable to use . Stable thermal system, improve equipment operation rate, compared with the same specifications equipment, the operation rate of 10%, 5% -10% increase in production, a 15% reduction in heat loss.
The we turn calcined equipment is widely used in industries such as steel, aluminum, non-ferrous metals, sodium dichromate, titanium dioxide.
Model | Parameter | Powe kw | Supporting device set
|
Speed r/min | Inclination % | Capacity t/d |
Φ1.8×45 | 0.66-1.98 | 4 |
| 30 | 3 |
Φ1.9×36 | 0.176-1.76 | 4 | 67-79 | 30 | 3 |
Φ2.2×45 | 0.85-2.54 | 3 |
| 55 | 3 |
Φ2.3×25 | 0.1626-1.626 | 3.5 |
| 37 | 3 |
Φ2.4×45 | 0.33-2.0 |
| 132 | 45 | 3 |
Φ2.5×60 | 0.3-1.0 | 4 |
| 55 | 4 |
Φ2.7×50 | 0.556-1.222 | 3 |
| 75 | 3 |
Φ2.8×44 | 0.4-1.2 | 5.23 | 150 | 55 | 3 |
Φ3.0×60 | 0.29-1.39 | 3 | 250 | 100 | 4 |
Φ3.2×64 | 0.861 | 3.6 |
| 90 | 3 |
Φ3.5×54 | 0.302-2.016 | 3 |
| 132 | 3 |
Φ3.6×79 | 1.71-1.93 | 2 | 660-700 | 135 | 4 |
Φ4.0×100 | 0-1.83 | 2 | 960-1056 | 245 | 5 |
Φ4.15×58 | 0.35-0.7 | 5 |
| 110 | 4 |
Φ4.2×50 | 0.33-1.8 | 3 | 600 | 160 | 3 |
Φ4.5×100 | 0.856-2.57 | 4 |
| 2×200 | 4 |
Φ4.5×110 | 0.856-2.57 | 4 |
| 2×200 | 4 |
Φ4.6×90 | 0.106-0.71 | 2.6 | 672 | 250 | 4 |
Φ5.0×35 | 0.3-1.47 | 4.5 | 4000 | 2×160 | 2 |
