Flotation Machine

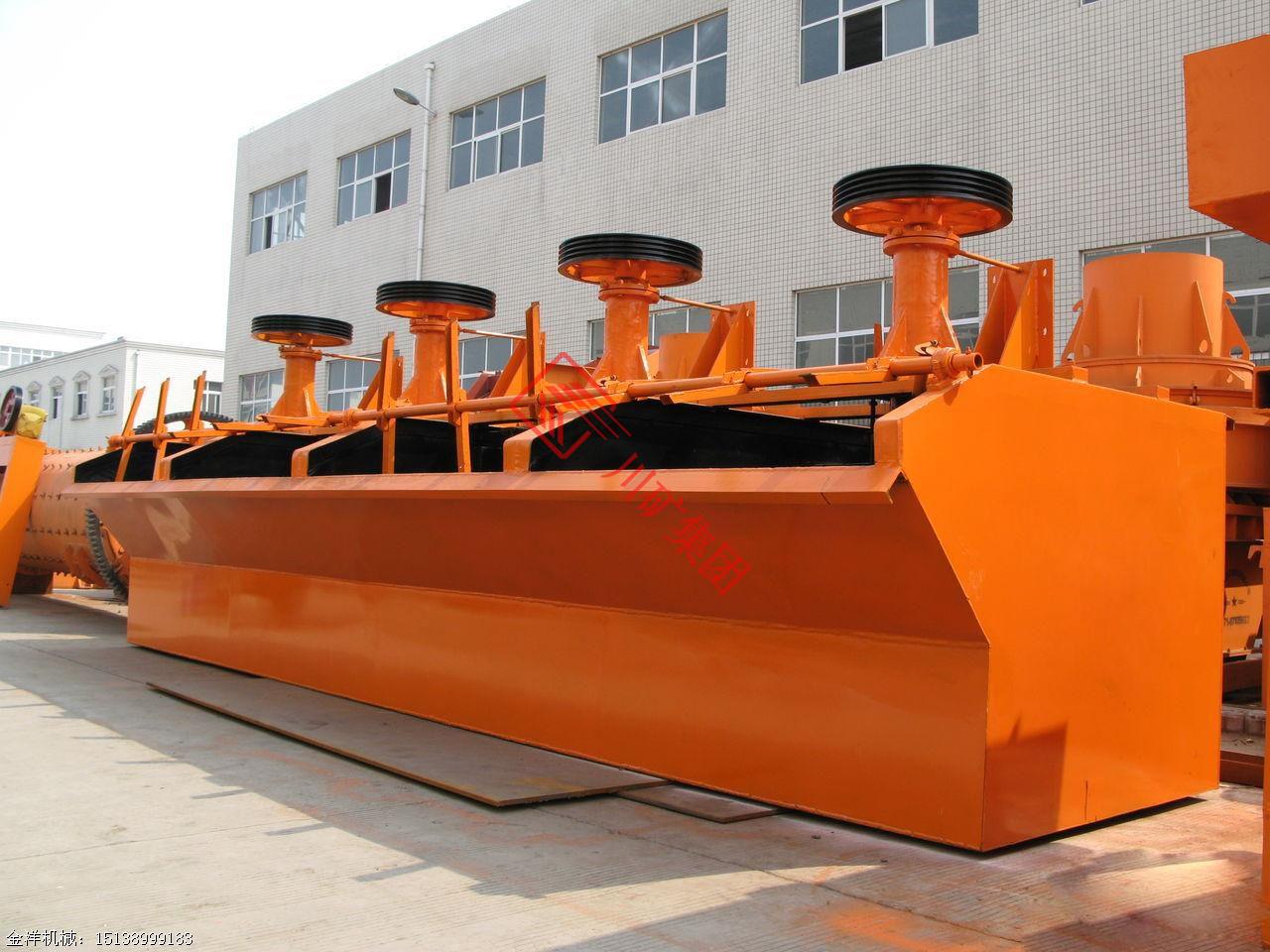

BFmechanical agitation type flotation machine
Product introduction
BF type flotation machine comprehensivelearned the characteristics of the existing flotation machine in China, is akind of energy saving and efficient self aspirated flotation machine. Themachine has a horizontal configuration, imbibition, self-priming pulp, realizedthe air bubble can self-return etc, do not need to be equipped with anyancillary equipment. Than A type flotation machine, compared to single powersaving 15% ~ 25%, use cycle extended more than double the wearing parts,suitable for color, black and non-metallic mineral separation.
The characteristics
1. The novel with a backward of type doubleblade impeller;
2. The pulp is, dont need a ladderconfiguration;
3. The inspiratory capacity is big, andinspiratory capacity is adjustable;
4. High efficiency, stable liquid level;
5. Parts, use cycle is long, convenientoperation and maintenance;
6. The clearance between impeller and thecover plate allows a wide range, with the impeller, wear plate gap increased,inspiratory capacity has no obvious change;
7. The flow of the pulp fixed in the groovecycle in the way, is advantageous to the suspension of coarse minerals.
The working principle
When the main shaft by motor drivenrotating impeller, the impeller of pulp cavity subjected to centrifugal forceto fly out, on the impeller blade central area form the negative pressure,suction air, feed, and realized, at the same time under the impeller blade fromthe slot suction pulp, in the central blade merging two strands of pulp flow,to flow around the impeller, the cover plate after steady flow and orientation,into the slot in the pulp, mineralized bubbles rise to the surface of trough tocreate foam.
XCFtype air mixing type flotation machine
Product introduction
XCF flotation machine is not only a generalair mixing type flotation machine flotation technical index is good, low energyconsumption, and can give mine self-priming and middlings, flotation operationbetween horizontal layout, reduce the beneficiation process complexity andinfrastructure investment. XCF type flotation machine and KYF flotation unit tounit, widely used in non-ferrous metal, black metal and chemical industry, haveproduced remarkable economic benefits.
The characteristics of
1. The impeller has upper and lower blade,plasma absorption zone and aeration zone;
2. Self-priming pulp, homework can levelconfiguration;
3. The outside air, your convenientadjustment;
4. Low speed, low consumption;
5. Concentrate taste improve recovery rateincreased;
6. Less reagent consumption, wearing partswith long cycle;
7. Simple structure, convenient operationand maintenance;
8. Often used with joint use of KYFflotation machine.
The working principle of
When rotating impeller, the impeller bladesuction feeder and middlings, the blade groove, from around the tank bottom bythe lower impeller suction under the impeller blade, at the same time, by theblower for the under low pressure air through distributor into the impellerblades, pulp and air mix between impeller under, from under the impeller bladedischarge, discharge of pulp air mixture with blade discharge on pulp, byinstalling around the wheel of the stator current orientation after the slotsinto the main body in the pulp, mineralized bubbles rise to the surface of atrough and forming foam layer.
